Do you already assemble precisely and quickly on the construction site?
You have a modern timber construction company with qualified employees and produce high-quality and precisely fitting wall-, ceiling- and roof-elements with the help of your well-equipped machinery.
BUT DO YOU ALSO ASSEMBLE WITH MILLIMETER PRECISION ON THE CONSTRUCTION SITE?
In 2018, STEXON launched a new era for timber construction: STEXON connectors enable highly efficient assembly on the construction site, just as you know it from your production.
THE PRECISE CONNECTOR SYSTEM
Do you need the technical assessment documents? Get the technical documents in the download area:
Connector Types

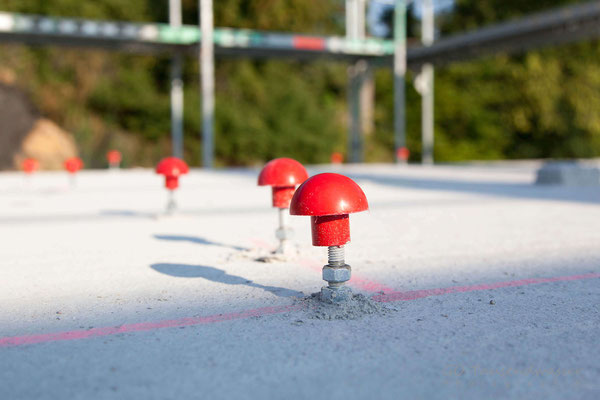

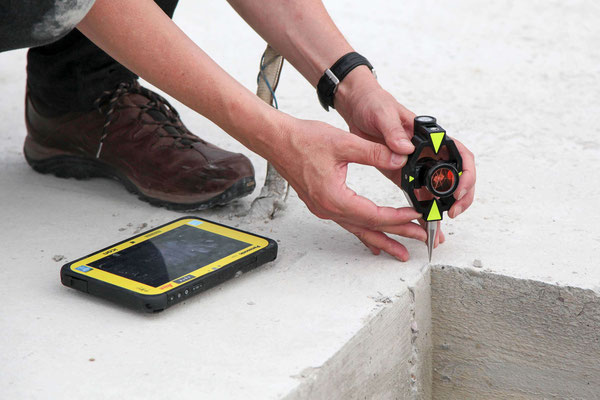

MEASURE AND STAKE OUT
The video is in German. But, you can see how the STEXON system is mounted precisely and accurately on the base plate.
With our patented connectors, you can easily and precisely join walls, ceilings and roof elements. On request, the connection can either be dismantled or, with clamping jaws, also be fully axially load-bearing. In both cases, the connection is statically load-bearing when sheared. It couldn't be more efficient.
YOUR ADVANTAGES:
PRECISION.
Manufacturing, measuring, connecting and assembling can now be carried out with an accuracy of ± 1-2 millimeters.

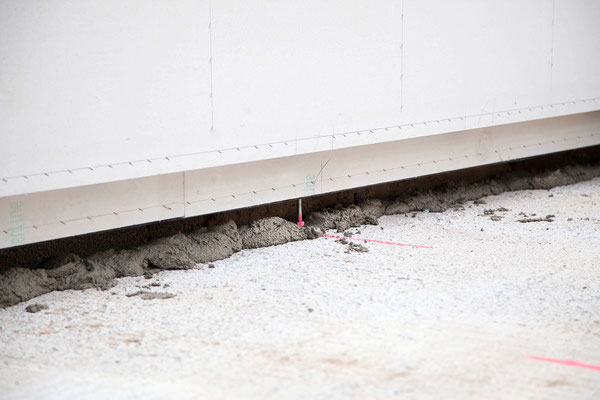

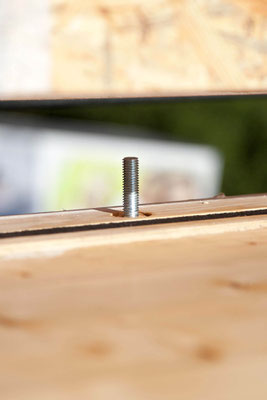

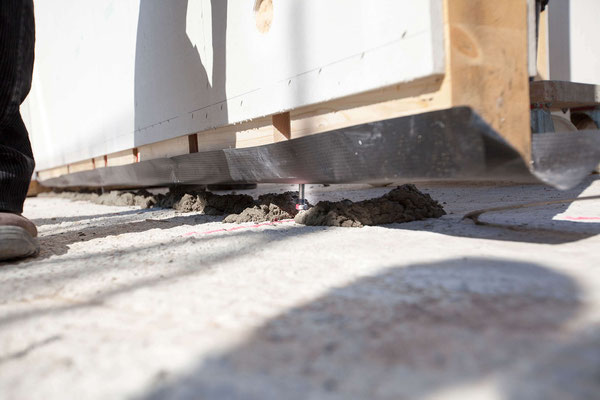

The self-centring of the M12 bolts placed in series takes place in the connector cone, which aligns the elements linearly during assembly. In addition, the elements are positioned on the hexagon nut with a height accuracy of 1 mm.
SAFETY.
The connection values are based on extensive approval tests and guarantee implementation in accordance with calculations and plans.

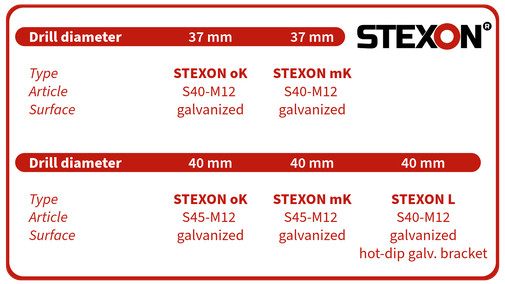

The STEXON system is easy to use and available for drill diameters of 37 and 40 mm. The quick connector is multifunctional and can be used on (almost) all element interfaces, from single- to multi-storey buildings.
PREFABRICATION.
Efficient and fast prefabrication in the factory, with flush concealed installation of the connectors in the elements, reduces rework on the construction site.
HIGHLY EFFICIENT.
Thanks to rational planning with the STEXON system, cheaper, removable connectors without clamping jaws (OK) can also be used. These now also bear the shear forces longitudinally and transversely to the grain.
Our new tie rods (L) bear significantly higher tensile forces and can now also be loaded in shear. The use of fewer connectors also means better fire and sound insulation for you.
FUTURE.
Real technical and economic construction progress makes building in the future:
- Faster – STEXON connections are faster with up to 30% less assembly time
- Accuracy – technical progress through millimeter accuracy
- Efficiency is increased: saves up to 50% personnel on the construction site
- Extreme simplification with end-to-end digital data
- Customer-oriented solutions
FEWER ACCIDENTS.
Safety is of great importance in construction. With STEXON, accidents at work are reduced by up to 80% and working on the construction site is more effortless, less physical strain and more precise.
This makes your customers and employees happier!
Do you want to take your production on the construction site to the next level? Contact us and we will be happy to advise you on which connectors are right for your needs.
